Project name : Testing of Offshore Winches
Location : Yew Choon Yard
Year : June 2010



Cargo

: 2 units Winch testing (each 120tons)



Equipment used:
1000Te test plate at Yew Choon yard.
Demag CC2800, 600Te Crawler crane.

In June 2010, Yew Choon performed the load test on 2 units offshore winches for one of Singapore’s leading Marine Equipment Fabricators.
The load test was performed in Yew Choon’s yard in Singapore where there is the availability of a 1000Te test plate.
Each winch was mounted onto a skid which in turn, was pinned against the links of our test plate.
Static and dynamic test were performed (up to 120Te.)
For the dynamic test, a test load of 120Te was lifted and suspended from Yew Choon’s Demag CC2800 crane.





M1

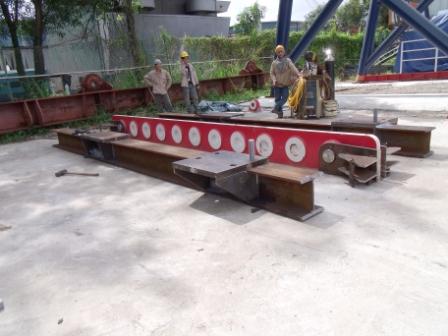

Setting up winch test frame connecting to Yew Choon test pad.

M5

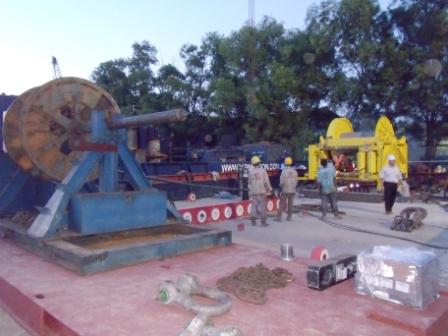

Preparing winch setup for load test.

M3

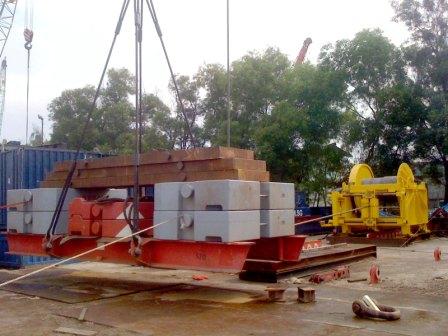

Pulling Test (120tons)

M2

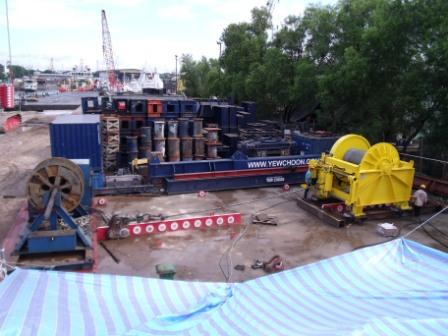

Horizontal static pull load test

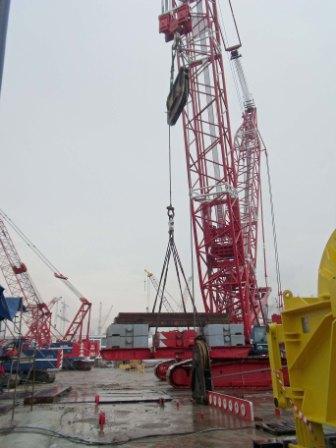

Vertical dynamic pull load test
